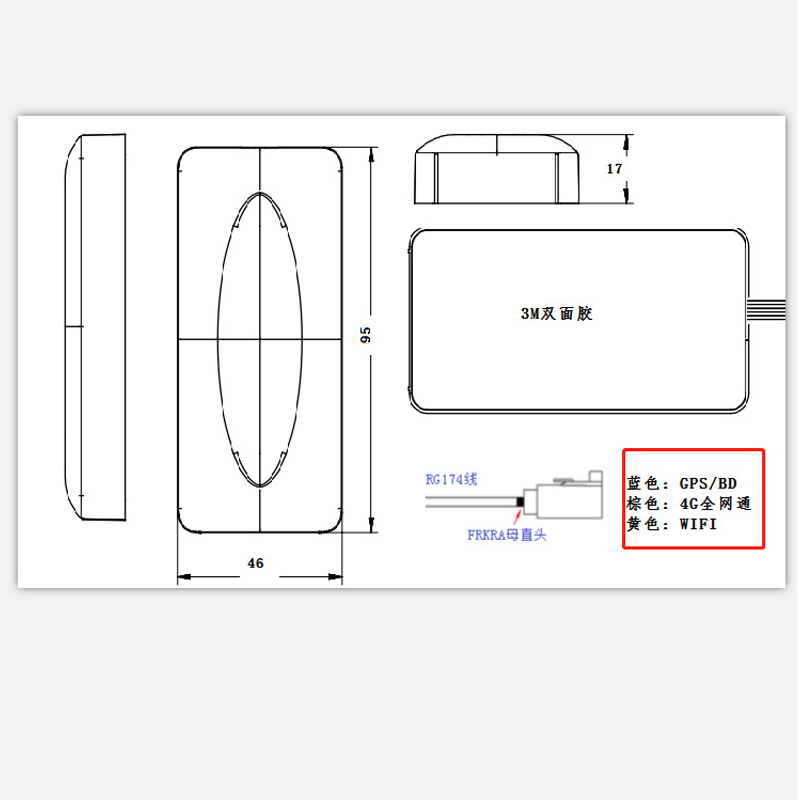

Three in one antenna 93.5 * 46.3 * 17.8mm

This is an antenna designed specifically for the GPS/BD/GLONASS/4G/WIFI frequency band, with a built-in high gain and low noise amplification module that uses a high out of band suppression filter to filter out interference signals, ensuring normal operation in harsh electromagnetic environments.

立即询价

咨询热线：13302929582

产品简介/ Product introduction

Technical parameters:

Frequency: GPS/BD/GLONASS/4G/WIFI

LAN gain: 28+2 dbi (customizable)<2.0

Standing wave:<2.0

Noise coefficient: 2.0 dB

Axis ratio:<13dB Typ, 15dB Max

Connector: SMA/Fakra (customizable)

Extension cable: 2M (customizable)

Characteristic impedance: 50Ohm

DC voltage: 3V-5V

DC current:<17mA

Passive gain: 23dBi

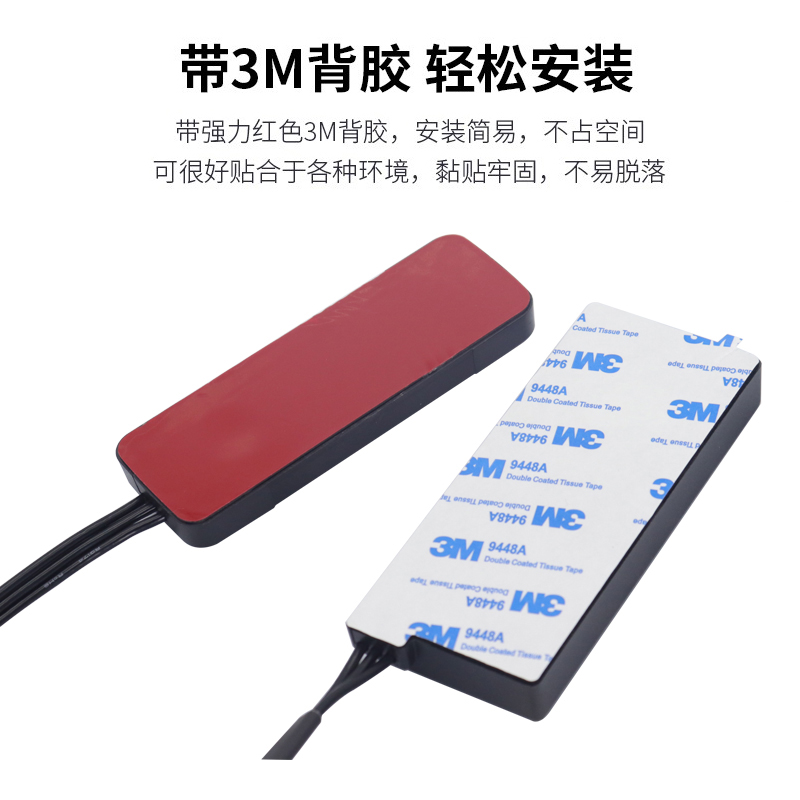

Fixing method: 3M adhesive

Waterproof grade: lp66

Size: 93.5 * 46.3 * 17.8mm
