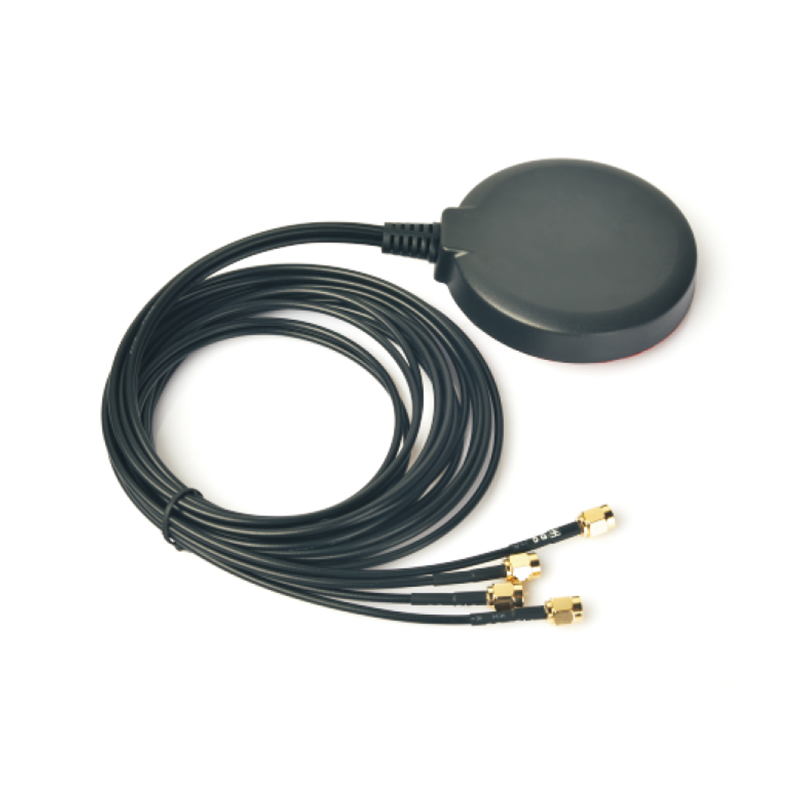

Four in one antenna 81 * 15mm

This is an antenna designed specifically for the GPS/BD/GLONASS/4G/5G/WIFI frequency band, with a built-in high gain and low noise amplification module that uses a high out of band suppression filter to filter out thousands of interference signals, ensuring normal operation in harsh electromagnetic environments.
立即询价
咨询热线：13302929582

产品简介/ Product introduction

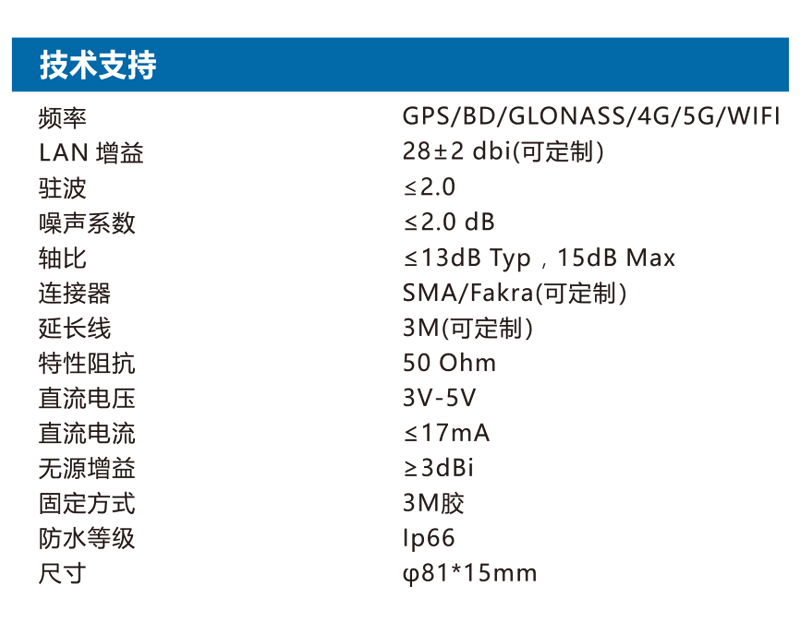

Technical parameter

Frequency: GPS/BD/GLONASS/4G/5G/WIF

LAN gain: 28+2 dbi (customizable)

Standing wave:<2.0

Noise coefficient:<2.0 dB

Axis ratio:<13dB Typ, 15dB Max

Connector: SMA/Fakra (customizable)

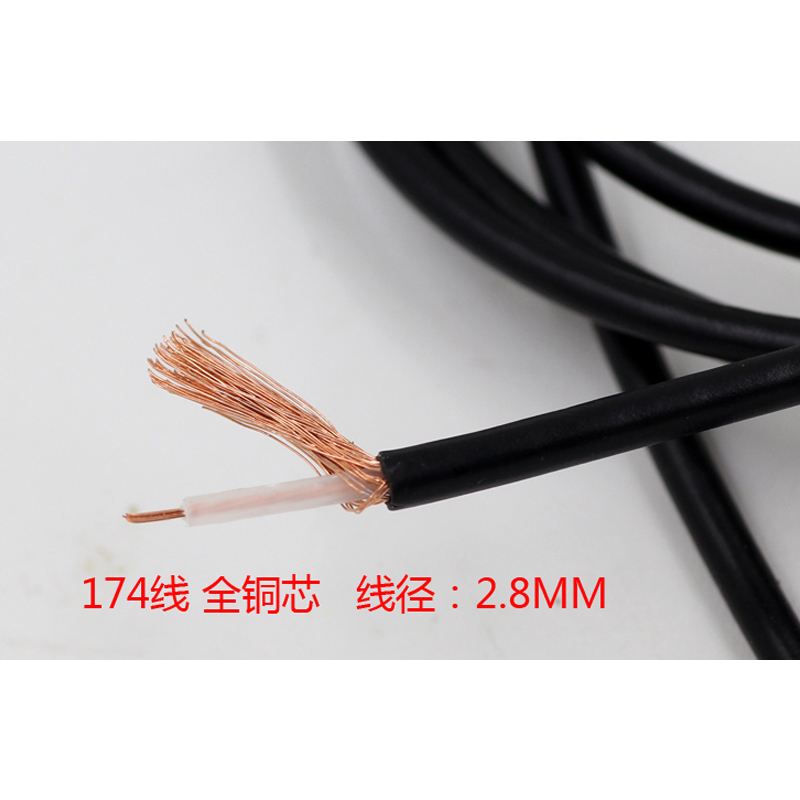

Extension cable: 3M (customizable)

Characteristic impedance: 50 Ohm

DC voltage: 3V-5V

DC current:<17mA

Passive gain: 23dBi

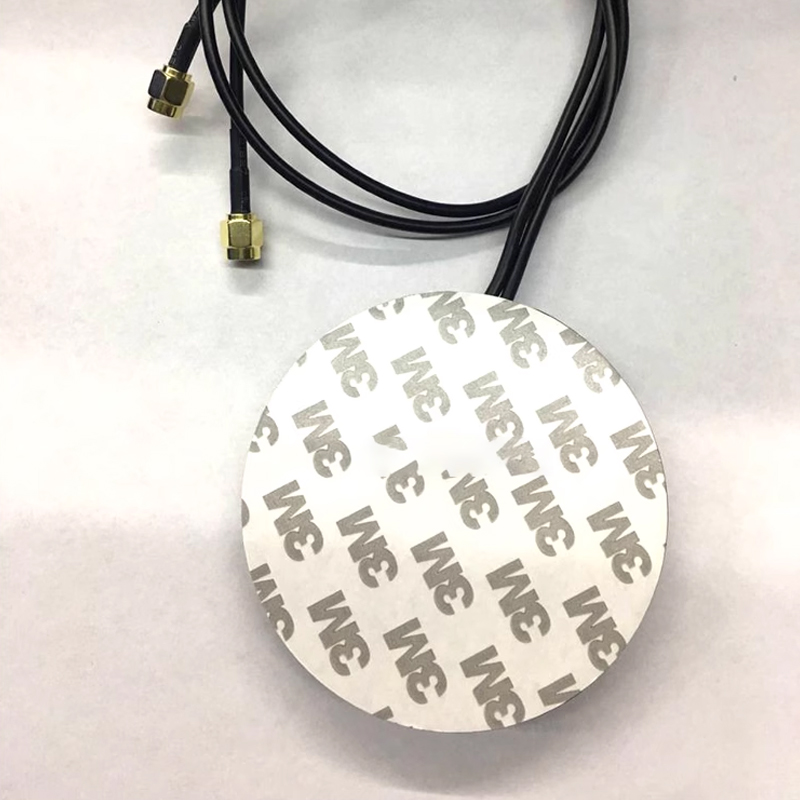

Fixing method: 3M adhesive

Waterproof grade: lp66

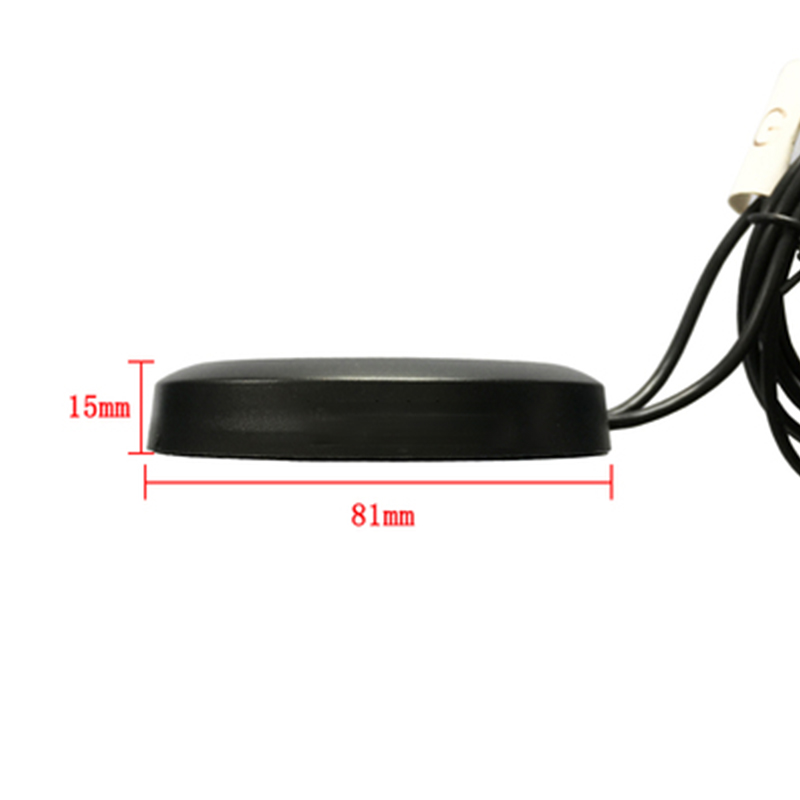

Size: φ 81 * 15mm
