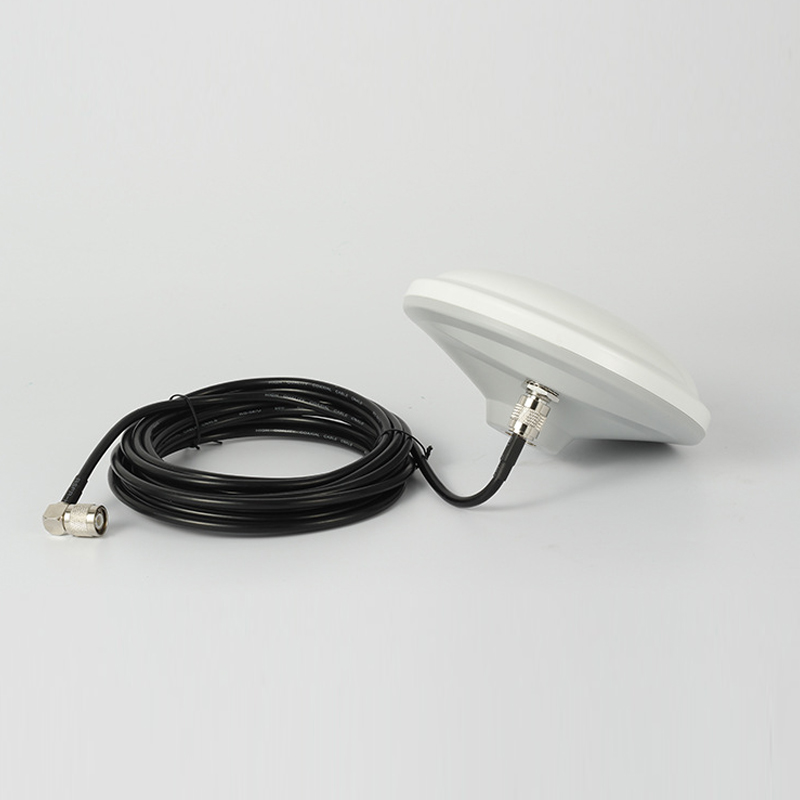

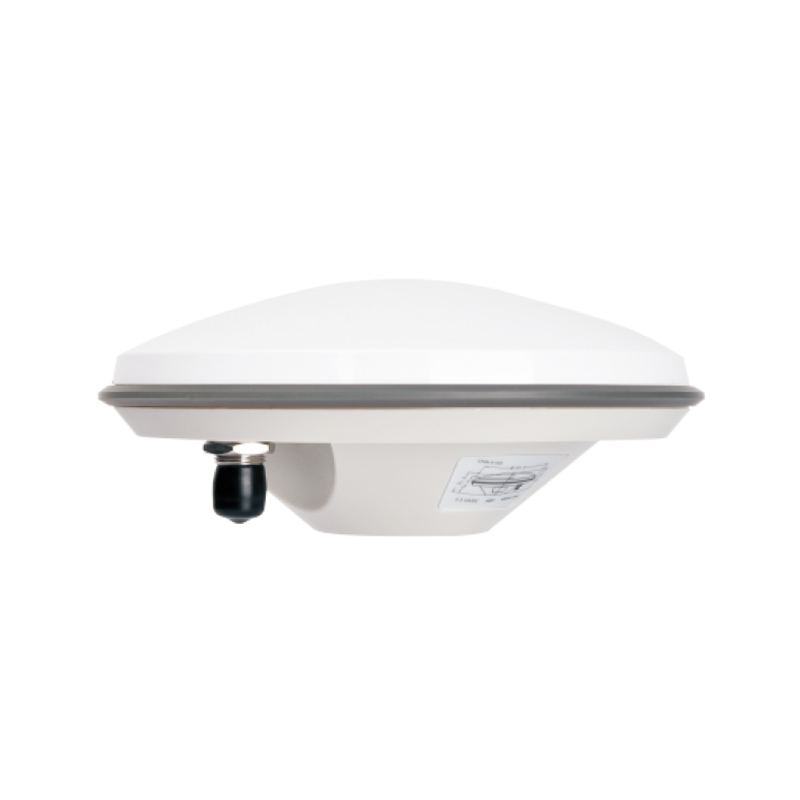

Four star multi frequency antenna
Technical parameters:
Frequency: GPS/BD/GLONASS/GALILEO
LAN gain: 40+2 dbi (customizable)
Standing wave:<2.0
Noise coefficient:<2.0 dB
Axis ratio:<13dB Typ, 15dB Max

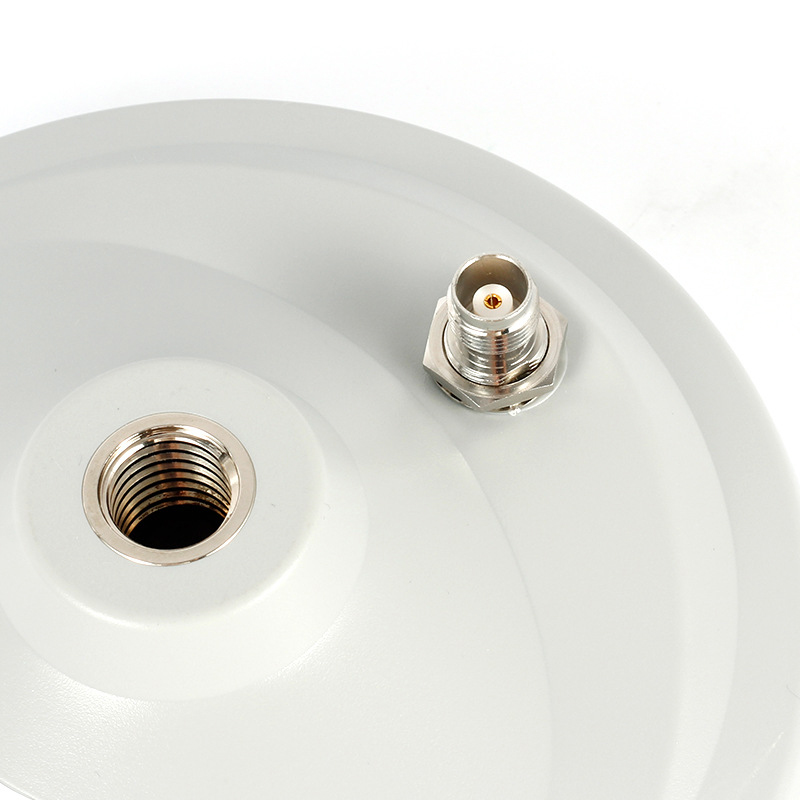

Connector characteristics: TNC-K
Impedance: 50 Ohm
DC voltage: 3.3V-12V
Passive gain: 25dBi

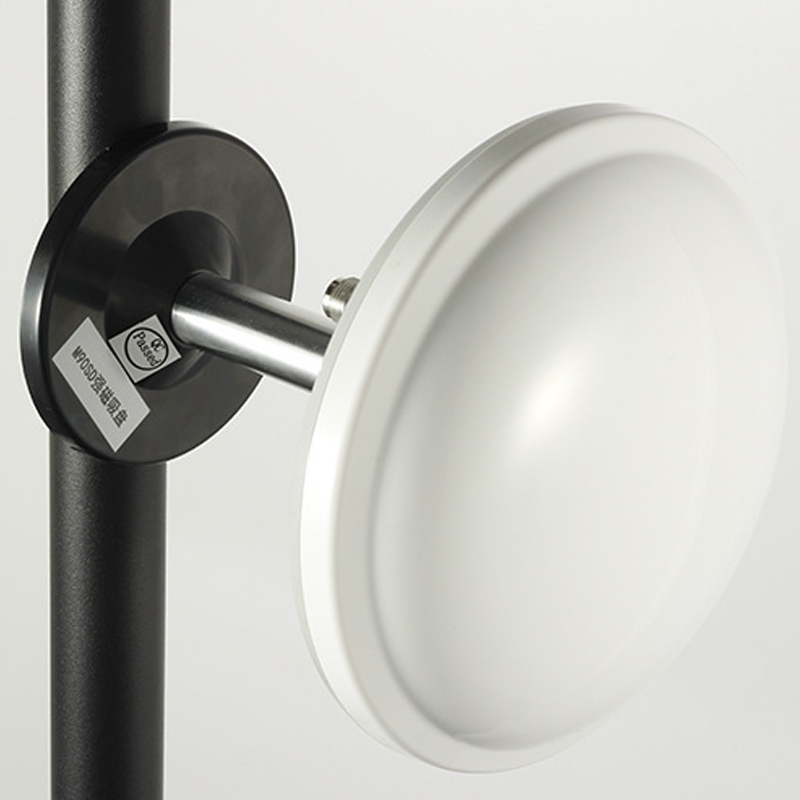

Fixing method: stud
Waterproof grade: IP67
Size: P154 * 64.2mm
